Product Overview

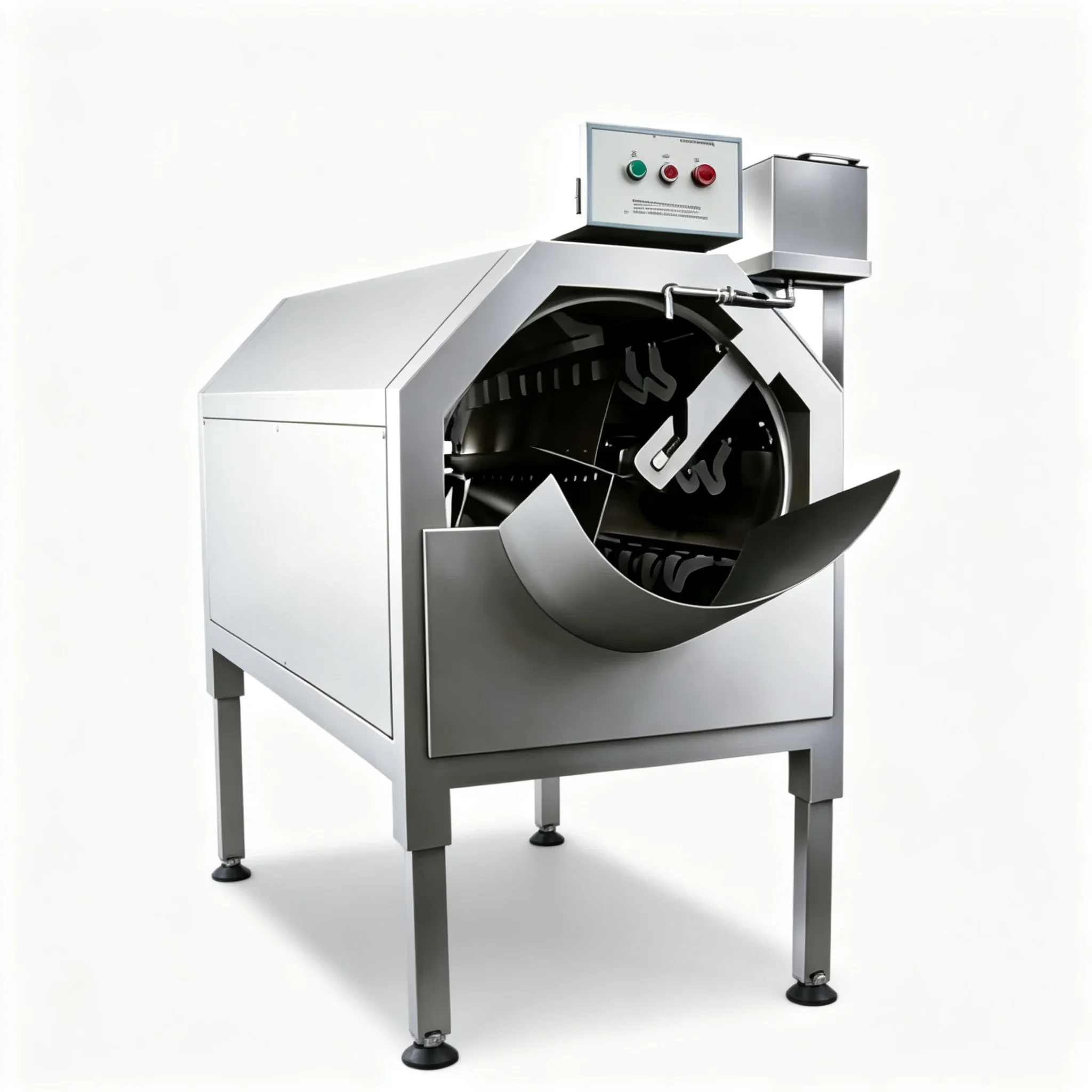

The GQC-3000 is a drum-type cutting machine built for the specific and commercially important task of separating linked sausage chains into individual portions after the tying or clipping stage. Unlike blade-type cutters that physically cut through the casing — introducing potential contamination points at the cut edge — the drum-type approach uses controlled rotational force to separate at the twist point, which is the casing’s natural weak point. The result is a clean, sealed separation without cut edges that require sealing or reprocessing.
At 1,000 to 3,000 kg/h throughput on 1 kW of power, the GQC-3000 represents one of the most energy-efficient separation options available at commercial scale. The low power consumption is a direct result of the drum-type mechanism: rotational drum motion requires far less motor energy than the repeated reciprocal blade motion of high-speed cutting machines at comparable throughput. For operations that run the sausage separation step continuously across two shifts, the annual energy cost difference is material.
The dual variable-frequency drive system — separate VFD control for both the drum and the auger feed — is what makes the GQC-3000 practically adjustable to different product specifications without mechanical changes. Drum speed determines the separation force and pace; auger speed determines the feed rate and product tension at the separation point. Adjusting both independently allows the operator to dial in the correct combination for each casing type and diameter without a trial-and-error approach.
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Model | GQC-3000 | Drum-type sausage separator |
| Productivity | 1,000 – 3,000 sticks/h | VFD speed adjustable |
| Product Length | 20 – 130 mm | Set via equipment parameters |
| Casing Diameter Range | Φ10 – Φ50 mm | Collagen & natural casings |
| Power | 1 kW / 380 V | Exceptionally low energy consumption |
| Weight | 1,500 kg | Stable production unit |
| Overall Dimension | 3,170 × 1,200 × 1,950 mm | High-capacity footprint |
Five Operational Advantages
Replacement Parts & Drum Components
The drum surface and auger feed components are the primary wear items on the GQC-3000. We supply all factory-specification replacement components, including drum liners, auger flights, and VFD control modules. Maintaining one drum liner set on site is recommended for operations running continuous two-shift production.
| Component | Detail |
|---|---|
| Drum Liner Set | Food-grade, factory tolerance surface finish |
| Auger Flight Assembly | Stainless, per casing diameter range |
| VFD Drive Modules (×2) | Drum VFD + Auger VFD, factory spec |
| Safety Interlock Kit | Panel sensors + replacement switches |
What Buyers Say
“The energy consumption figure was the first thing that stood out in the spec sheet. 1 kW for 3,000 kg/h sounded too good but it’s accurate — our energy monitoring confirms it. We replaced a 4 kW blade cutter that was producing cut-edge contamination issues and the drum separation gives us a much cleaner product end. No sealing step needed.”
“The dual VFD setup is genuinely useful. We run both collagen and natural casings across different shifts and the drum/auger speed ratio for each is different. Being able to save and recall those settings without a mechanical change saves us 15 minutes per product changeover. The Φ10–Φ50 range covers everything we produce.”
“Reliable machine for our volume — we’ve been running two units for 14 months without a significant maintenance event. The 3,170 mm length takes up floor space but the throughput justifies it. Docking one star only because I’d like a smaller footprint option for our second line where space is tighter.”
Request a Quote for the GQC-3000
Tell us your casing type, diameter, target product length, and required throughput — we’ll reply with a factory price within one business day.
