Description
What Makes the JLSK-II Different

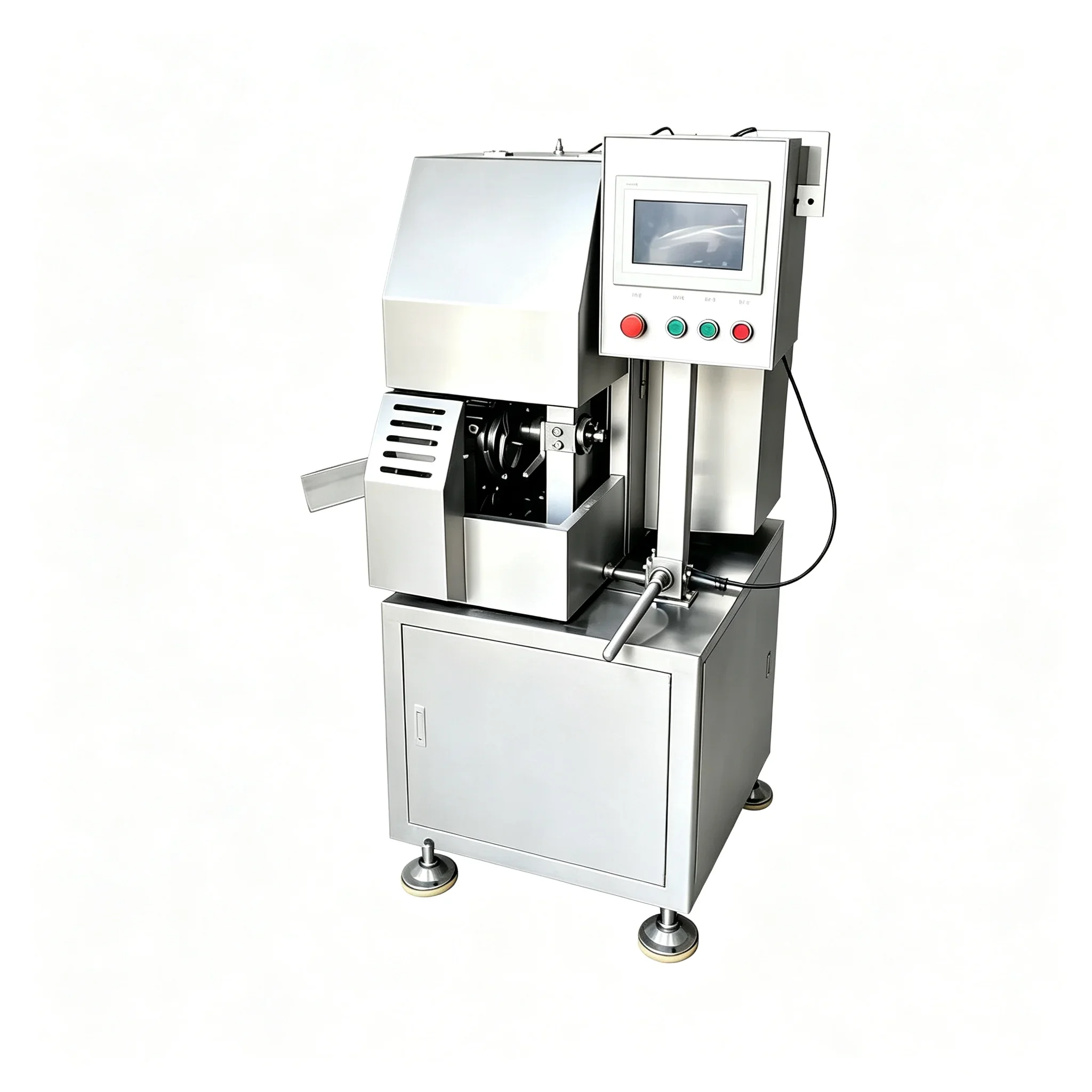

Most clipping machines on the market today trace their design back to pneumatic actuation — a choice made decades ago when compressed air was the only practical way to generate rapid, repeatable mechanical force in a wet food-processing environment. The JLSK-II takes a different approach: it replaces the air supply entirely with a servo motor driving a dedicated single-speed mechanical transmission. The result is a double clipper that runs at 80 clips per minute with consistent seal formation, zero compressed-air cost, and a mechanical structure simple enough that daily maintenance does not require a trained technician.
The practical economics are straightforward. A pneumatic clipper at 80 clips per minute requires a compressor capable of sustaining adequate line pressure across a full shift — a capital cost, an energy cost, and a maintenance overhead that the JLSK-II simply does not have. Over a production year, the difference in operating cost between a pneumatic clipper and the JLSK-II is measurable and consistent. For operations choosing their first automated clipper or replacing aging pneumatic equipment, the JLSK-II represents the cost-effective path that does not sacrifice seal quality or throughput to get there.
The hardened wear parts address a pain point that has historically limited the service life of aluminum wire clippers: the die and punch surfaces that form the clip around the casing are the highest-stress contact points in the machine, and in standard-specification clippers they wear faster than the rest of the machine. The JLSK-II’s hardened treatment on these components extends their service interval significantly, which means fewer replacement cycles per year and more predictable maintenance planning.
Technical Specifications
The JLSK-II handles flat-diameter casings from 28 to 85 mm — covering fresh sausage, hot dogs, cooked ham, and most standard PVDC and collagen-cased products. The 920–1,000 mm clipper center distance accommodates the majority of inline filling setups without requiring height adapters.
| Parameter | Value | Notes |
|---|---|---|
| Model | JLSK-II | Servo double clipper |
| Clipping Speed | 80 times/min | Sustained, consistent rate |
| Power | 3 kW / 380 V | No compressed air required |
| Casing Range | Flat dia. 28–85 mm | Sausage, ham, PVDC |
| Clipper Center Distance | 920–1,000 mm | Inline filler compatible |
| Overall Dimension | 1,160 × 1,470 × 1,400 mm | |
| Weight | 500 kg | Stable production footprint |
Seven Features That Matter in Daily Production
Spare Parts & Compatible Consumables We Supply
We stock and supply all wear parts for the JLSK-II as part of our after-sales service. Ordering spare parts from us ensures dimensional compatibility and the same hardened-surface treatment as the factory components — third-party parts may fit but often lack the hardening treatment that determines die service life.
| Part / Consumable | Specification | Notes |
|---|---|---|
| Aluminum Wire Coils | 21 / 2.45 / 2.7 / 2.9 mm gauge | Food-grade, bulk supply available |
| S1 / S2 Mold Sets | Factory spec | Hardened die surface, OEM fit |
| Punch & Die Kit | Per casing range | Key wear item — recommended annual stock |
| Servo Motor Assembly | OEM replacement | Full electrical documentation supplied |
What Our Customers Say
“We replaced two aging pneumatic clippers with a single JLSK-II and immediately eliminated our compressor maintenance schedule. The seal consistency is actually better than what we were getting with the pneumatic units — the double clip formation is cleaner and more uniform. Our line efficiency went up because we no longer lose 20 minutes every morning waiting for pressure to build.”

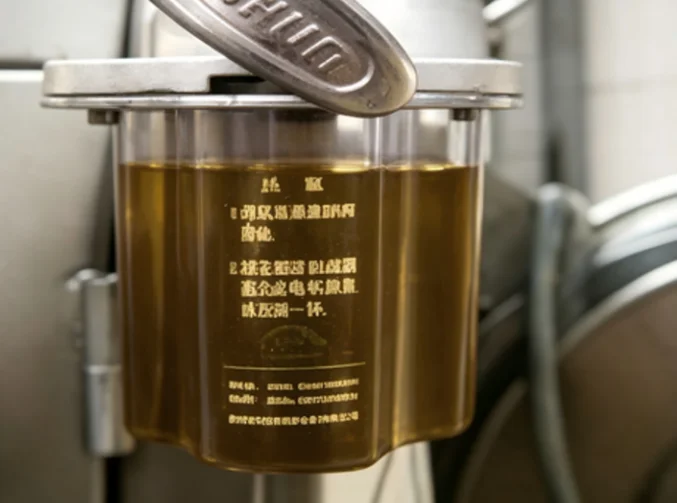

“The auto-lubrication system is something I didn’t know I needed until I had it. Our previous clipper required manual greasing every shift — easy to forget at the end of a long day, and we had two die failures in one year from dry-running. Six months with the JLSK-II and nothing to report. The hardened die is also noticeably more durable.”
“Good throughput and the wire changeover without mold swaps is genuinely convenient for our multi-product shifts. Setup documentation was clear and the commissioning video call sorted the line integration questions quickly. The only reason I’m not giving five stars is that I’d like a wider casing range — but for our 28–75 mm product range it performs exactly as specified.”
Applications

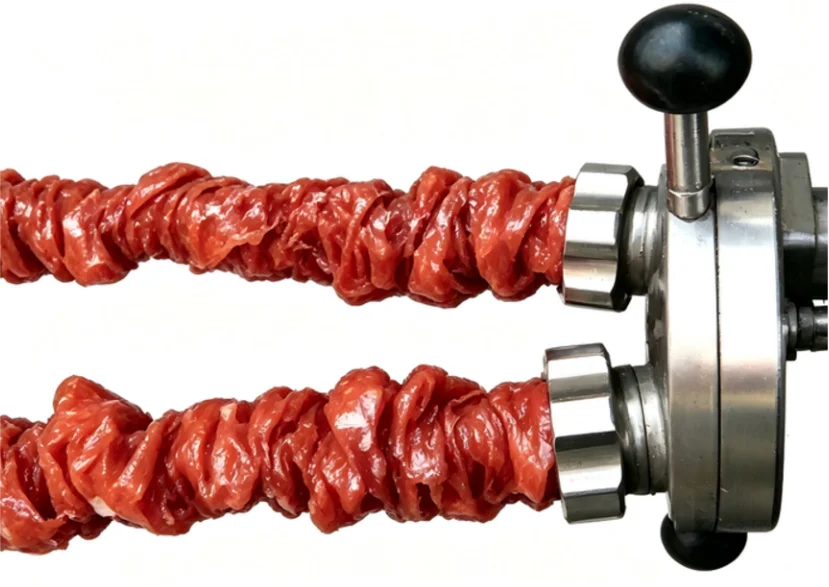

The JLSK-II covers the aluminum wire clipping step across fresh sausage, cooked hot dogs, ham loaf in PVDC casing, and standard cooked salami in the 28–85 mm flat-diameter casing range. It pairs directly with vacuum filling machines in the 3,000–5,000 kg/h output class, and its integrated count-and-cut removes the need for a separate portioning step before packaging.
For operations considering a full fill-and-clip line, the JLSK-II connects to the JLSK filler (see product 07) as an inline system. Contact our team for dimensional drawings and the interface specification for your specific filler model. Visit our About Us page or contact us directly.
அடிக்கடி கேட்கப்படும் கேள்விகள்
Request a Quote for the JLSK-II
Send us your casing flat-diameter range, required wire gauge, and target production speed — we will reply with a factory price and lead time within one business day.
