JLSK + DCS-12 Electric Sausage Filler & Electric Aluminum Wire Clipper

The JLSK + DCS-12 combines an electric sausage filler and an electric aluminum wire clipper into a single integrated filling and clipping unit — one machine, one power connection, and one control system where conventional production lines require two separate machines with a manual handoff between them. At 70 beats per minute and 5.5 kW total power consumption, it delivers a filling-and-clipping cycle rate that is competitive with mid-range automated lines at a significantly lower capital and footprint cost.

The entire design philosophy of the JLSK + DCS-12 represents an independently developed approach to the filling-and-clipping problem: the machine was engineered to break the dependence on imported filling equipment that has historically dominated this product category. All food-contact components and the machine housing are fabricated from stainless steel, meeting food-grade hygiene requirements, and the imported servo control system provides the precision and reliability that the integrated clipping cycle requires to maintain consistent aluminum wire seal quality at production speed.

The practical result for production managers is a machine that reduces the floor space required for filling and clipping, eliminates the manual transfer point between the two operations that is a consistent source of weight variation and contamination risk in conventional two-machine setups, and delivers a clean, consistent aluminum wire seal at a rate that keeps pace with commercial production volume demands for the sausage and meat paste categories it is designed to handle.

Technical Specifications

The JLSK + DCS-12 operates at 70 beats per minute across a 5.5 kW total power draw. The compact footprint of 1,100 × 1,200 × 1,772 mm covers both filling and clipping in a space that a standalone vacuum filler of comparable output capacity would typically occupy alone.

Why Integrated Filling and Clipping Changes the Operational Picture

In a conventional two-machine sausage production setup, the filled casing exits the filler and is transferred to a separate clipping machine. That transfer point introduces three separate problems that the JLSK + DCS-12 eliminates simultaneously.

Problem 1: Weight Variation at the Transfer Point

When a filled casing sits between the filler exit and the clipper entry, filling pressure relaxes slightly — particularly with softer meat paste or emulsion products that continue to flow under their own weight after the filler pump stops. This relaxation changes the fill weight of the last portion before clipping, producing a systematic low-weight bias on the first clip of each transfer. The integrated design eliminates the transfer: clipping happens immediately at the fill exit, while filling pressure is still applied.

Problem 2: Contamination at the Handoff

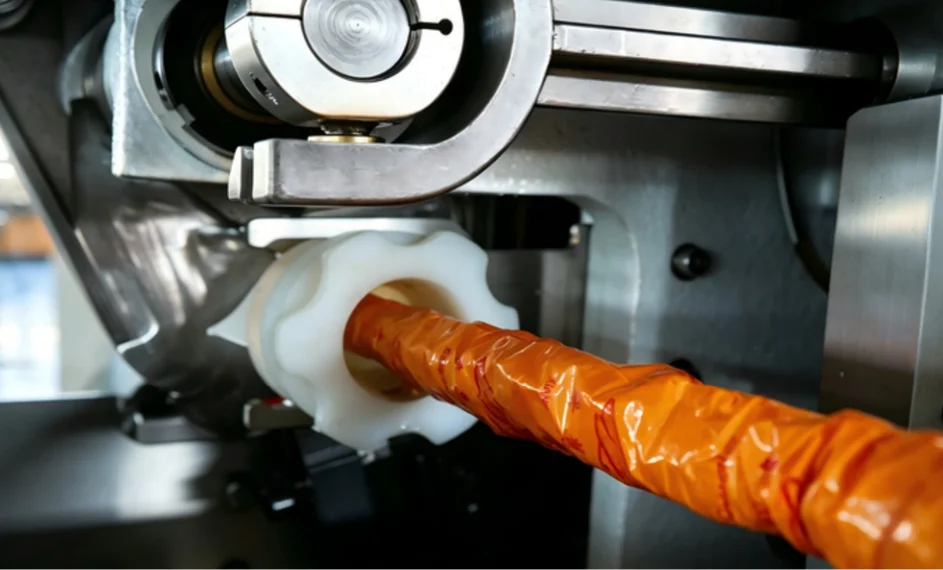

Any exposed food contact surface between the filler and the clipper is a contamination risk — particularly when the transfer is manual and involves operator handling of a pressurised, filled casing. The JLSK + DCS-12’s integrated design means the filled casing moves directly from the filling horn into the clipping station within the same enclosed machine body, reducing food contact surfaces and simplifying the HACCP risk assessment for this part of the production line.

Problem 3: Synchronisation Overhead Between Two Machines

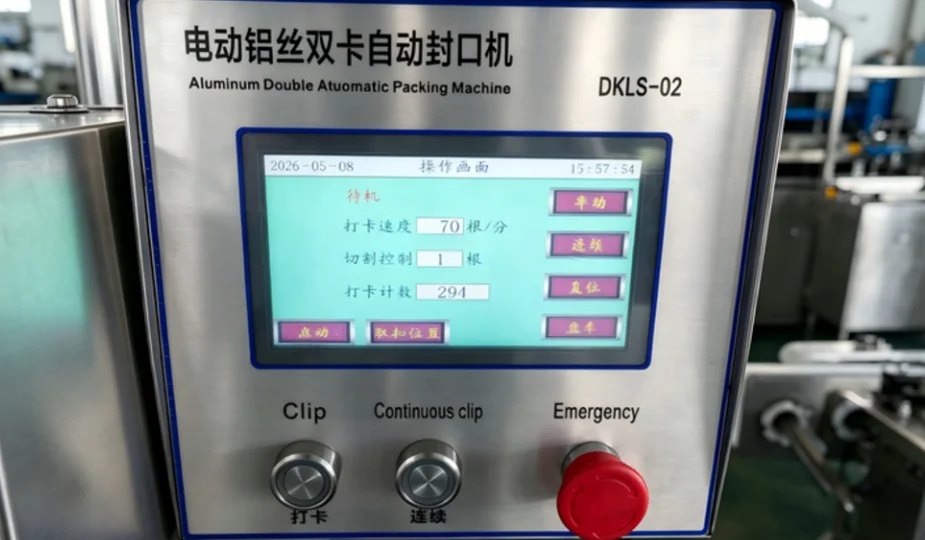

Running a filler and a clipper as separate machines requires synchronising their speeds so that the fill rate matches the clip rate — an adjustment that needs revisiting every time either machine’s speed changes, the product changes, or the casing diameter changes. The JLSK + DCS-12’s servo control system manages both operations through a single control loop: the fill rate and clip rate are synchronised internally, with no operator action required to maintain the match when production parameters change.

Key Performance Features

Applications: Production Scenarios Where This Machine Delivers

The JLSK + DCS-12 is positioned for meat processing operations where the investment in a full vacuum filling line is not yet justified, but where manual filling-and-clipping is already the throughput constraint and the source of the most significant quality variation. It is a meaningful step up from manual operations, and a cost-effective alternative to a full vacuum filler plus separate clipper setup for producers in the small-to-mid capacity range.

Sausage & Hot Dog Production

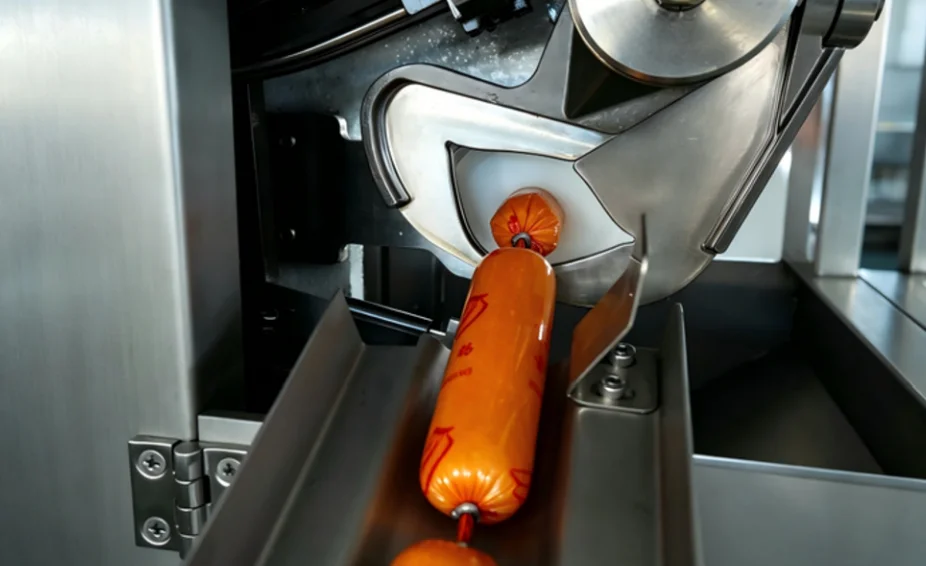

Fresh and cooked sausage in aluminum wire clip format is the primary application. The 70 beats-per-minute rate gives you a sustained production output across a full shift without the fatigue-related cycle rate variation that manual clipping introduces after the first hour of production. The integrated design means one operator can run the fill-and-clip station rather than two — a direct labour cost reduction that is relevant to the economics of the investment in smaller operations.

Meat Paste & Mixed-Material Products

The JLSK’s compatibility with both meat pieces and minced meat means it handles the range of material types that a mixed-product operation runs across a shift — from fine-emulsion hot dog paste to coarser meat-and-spice blends for specialty sausages. The servo control system adapts the fill rate to the material rather than requiring operators to manually throttle the filler speed when the material viscosity changes between batches. Learn more about our manufacturing approach at our About Us page.

JLSK + DCS-12 vs. Separate Filler and Clipper Configurations

The comparison below addresses the operational and economic factors that production managers weigh when choosing between an integrated unit and a two-machine configuration.

Why Source the JLSK + DCS-12 from Our Factory

We manufacture and export from Shenhua Road, Hangzhou. The JLSK + DCS-12 ships with full English-language documentation, factory acceptance testing, and direct access to the engineering team that designed the integration between the filling and clipping systems. Factory-direct pricing with no distributor margin — and commissioning support that covers the specific integration between both units rather than treating them as two independent machines.

Ordering & Configuration

The JLSK + DCS-12 ships as a pre-configured integrated unit — the filling and clipping systems are set up and tested together at the factory before shipping. Configuration details to confirm at order time include the voltage specification for your facility, the aluminum wire gauge for your clip size, and the casing diameter range you intend to run. We advise on wire gauge and casing compatibility based on your product specification before production begins.

For buyers who want to expand the JLSK + DCS-12 into a longer production line — adding a tying machine, a hanging trolley, or a downstream cutting machine — our sales engineers can advise on the integration sequence and the interface specifications between the JLSK + DCS-12 and the additional equipment. Visit our contact page to start that conversation.

Frequently Asked Questions

Common questions from production managers evaluating the JLSK + DCS-12.

Get a Quote for the JLSK + DCS-12

Send us your product type, casing diameter, facility voltage, and target production volume — we will come back with a configuration recommendation and factory price within one business day.

Shenhua Road, Hangzhou, China 310031 · Contact Form →
