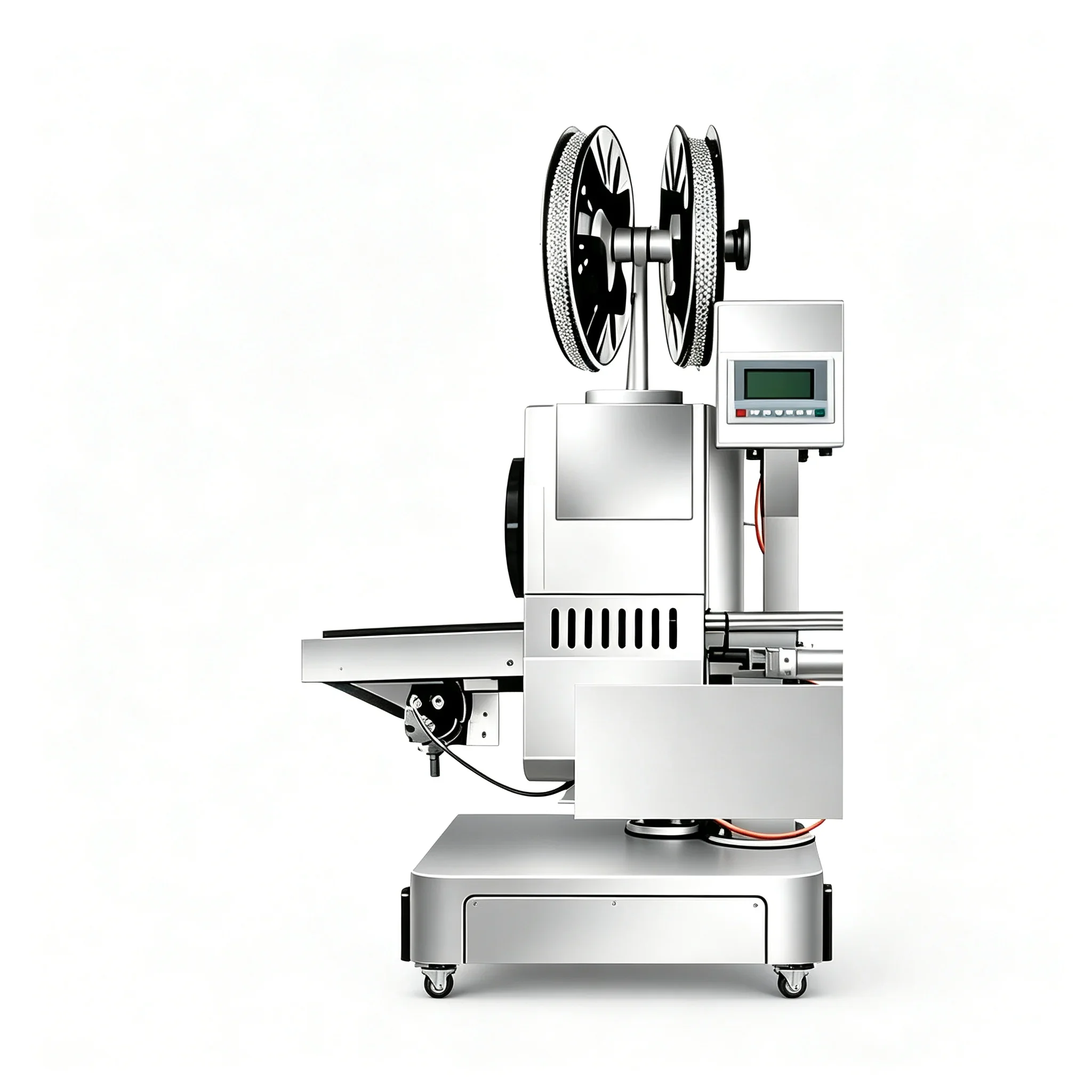

CSK-15/18 Double Clipping Machine — Great-Wall Clip Compatible
Meat Processing Equipment · processed-meat-equipment.com
Overview
The CSK-15/18 is a servo-driven double clipping machine designed around the Changcheng (Great-Wall) aluminum clip format — a clip type that has been the dominant closure standard for ham, sausage, and processed meat products in China and across Southeast Asia for over two decades. Where imported clipping machines from European manufacturers carry significant price premiums for the same fundamental clip-and-cut operation, the CSK-15/18 delivers comparable throughput, PLC intelligence, and auto-lubrication at a factory-direct price point that changes the investment calculation for mid-size processors.
The 0–120 clips per minute adjustable speed range is the key operational flexibility feature: it means the machine can be slowed to match a manual filling station’s output during short runs, then opened up to full speed on a high-volume automated line. The PLC-controlled speed adjustment happens through the HMI touchscreen — no mechanical speed changes, no gear swaps, no downtime to change throughput targets between products.
Dual voltage support — 380V three-phase and 220V single-phase — makes the CSK-15/18 compatible with facility electrical specifications across a wide geographic range, which is relevant for export-market buyers who cannot always guarantee three-phase availability at the clipper station in older processing facilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CSK-15 / CSK-18 |
| Clip Type | Changcheng aluminum clip |
| Clip Speed | 0 – 120 times/min (adjustable) |
| Power | 3.5 kW |
| Voltage | 380V 3-phase / 220V ±10% single-phase |
| Air Pressure | 0.5 – 0.6 MPa (compressor included) |
| Casing Range | Flat dia. 30 – 120 mm (aluminum knife cut) |
| Air Consumption | 0.0064 m³/min |
| Weight | 760 kg |
| Overall Dimension | 760 × 760 × 1,770 mm |
Key Features
The servo motor + multi-cam drive combination gives the CSK-15/18 a mechanical architecture that is both precise and simple to maintain. The servo motor provides the primary drive force, and the cam array converts rotational input into the multi-axis motion required for simultaneous clip application, casing cut, and product advance. The result is a machine with fewer moving parts than a full pneumatic-mechanical clipper, which translates directly into lower maintenance frequency.
Spare Parts & Consumables
We supply compatible Changcheng aluminum clips, replacement cam assemblies, punch/die sets, and the automatic lubrication oil reservoir as part of our after-sales consumable supply. All parts are dimensionally matched to the CSK-15/18 factory specification.
| Item | Detail |
|---|---|
| Changcheng Aluminum Clips | CSK-15 and CSK-18 compatible, food-grade |
| Punch & Die Set | Per casing range, OEM spec |
| Cam Assembly | Multi-cam drive set, factory tolerance |
| Lubrication Oil Kit | Reservoir + recommended oil grade |
Customer Reviews
“We’ve run two CSK-18 units side by side for eight months. The Changcheng clip consistency is excellent — we had seal failure issues with our previous pneumatic units that completely disappeared. The PLC preset system means our shift supervisors change products without calling me down to the line.”
“The dual voltage option was the deciding factor for us — our facility runs mixed three-phase and single-phase circuits and most import options required electrical upgrades. The 220V compatibility meant we could install immediately. Speed range is excellent for our small-batch premium product mix.”
“Solid machine. The auto-lubrication works as described and the auto-count module saves us manual counting time at end-of-batch. The commissioning documentation was thorough. I’d rate five stars but our first wire run needed a minor die adjustment that the team resolved via video call within the same day.”
Get a Factory Quote for the CSK-15/18
Tell us your casing diameter range, required clip speed, and facility voltage — we’ll respond with a configuration recommendation and price within one business day.
